Manages the Qt3D window, scene setup, and the main simulation loop. More...

#include <display.hpp>

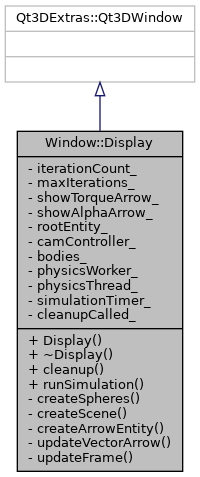

Inheritance diagram for Window::Display:

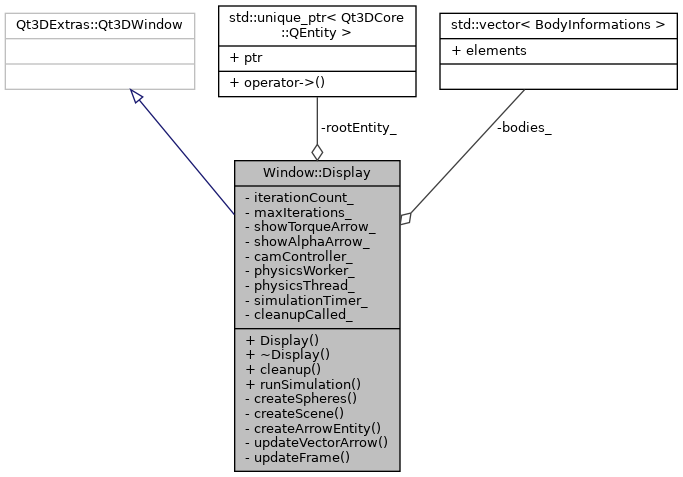

Collaboration diagram for Window::Display:

Public Types
using	BodyInformations = std::tuple< QPointer< Qt3DCore::QEntity >, QPointer< Qt3DCore::QTransform >, QPointer< Qt3DCore::QEntity >, QPointer< Qt3DCore::QTransform >, QPointer< Qt3DCore::QEntity >, QPointer< Qt3DCore::QTransform > >
	A tuple to hold the Qt-specific components for a single rendered body. More...

Signals
void	simulationFinished ()
	Emitted when the simulation has run for n_iter iterations.

Public Member Functions
	Display (const Configuration::SimulationConfig &config)
	Initialise the 3D window and set up the scene. More...

	~Display () override
	Destructor to ensure worker thread is cleaned up. More...

void	cleanup ()
	Performs cleanup actions, such as printing profiling reports. More...

void	runSimulation ()
	Starts the physics simulation by starting the worker thread. More...

void	shutdownPhysicsThread ()
	Stops the physics thread and destroys the worker. More...

Private Slots
void	updateFrame (const Model::Vector3dVec &positions, const Model::QuaterniondVec &quaternions, const Model::Vector3dVec &torques, const Model::Vector3dVec &alphas, std::size_t iteration)
	Slot to receive updated data from the physics worker and update the scene. More...

Private Member Functions
void	createSpheres (Rng::Pcg32 &gen)
	Create and set up the spherical bodies in the scene. More...

void	createScene (unsigned int seed)
	Set up the scene. More...

std::pair< Qt3DCore::QEntity , Qt3DCore::QTransform >	createArrowEntity (Qt3DCore::QEntity *parent, const QColor &colour, float radius, float length)
	Creates a 3D arrow entity for vector visualization. More...

void	updateVectorArrow (Qt3DCore::QTransform *arrowTransform, const Model::Vector3d &vector, double scaleFactor) const
	Updates the transform of an arrow entity to represent a 3D vector. More...

Private Attributes
std::size_t	iterationCount_
	The current iteration count. More...

std::size_t	maxIterations_
	Maximum number of iterations. More...

bool	showTorqueArrow_
	Flag to display torque vectors in the UI. More...

bool	showAlphaArrow_
	Flag to display angular acceleration vectors in the UI. More...

QPointer< Qt3DCore::QEntity >	rootEntity_
	The root entity for the 3D scene. More...

QPointer< Qt3DExtras::QOrbitCameraController >	camController_
	Mouse camera controller. More...

std::vector< BodyInformations >	bodies_
	List of spheres representing bodies. This list differs from the actual physical bodies in the simulation. More...

QPointer< Model::PhysicsWorker >	physicsWorker_
	The worker object running the simulation. Uses QPointer for safety: it becomes nullptr if the object is destroyed. More...

QThread *	physicsThread_
	The thread where the physics worker runs. Created with 'this' as parent, so Qt manages its lifetime. More...

QTimer *	simulationTimer_
	Timer to drive the simulation loop. Reused timer that triggers physics steps automatically. More...

bool	cleanupCalled_
	Flag to track if cleanup has already been called. This prevents cleanup from being called multiple times. More...

bool	physicsShutdown_
	True after shutdownPhysicsThread() has run. More...

Detailed Description

Manages the Qt3D window, scene setup, and the main simulation loop.

This class orchestrates the 3D rendering and the physics worker thread.

Definition at line 52 of file display.hpp.

Member Typedef Documentation

◆ BodyInformations

using Window::Display::BodyInformations = std::tuple< QPointer<Qt3DCore::QEntity>, QPointer<Qt3DCore::QTransform>, QPointer<Qt3DCore::QEntity>, QPointer<Qt3DCore::QTransform>, QPointer<Qt3DCore::QEntity>, QPointer<Qt3DCore::QTransform> >

A tuple to hold the Qt-specific components for a single rendered body.

Definition at line 60 of file display.hpp.

Constructor & Destructor Documentation

◆ Display()

Window::Display::Display ( const Configuration::SimulationConfig & config )

inlineexplicit

Initialise the 3D window and set up the scene.

Parameters

config The simulation configuration object.

Definition at line 69 of file display.hpp.

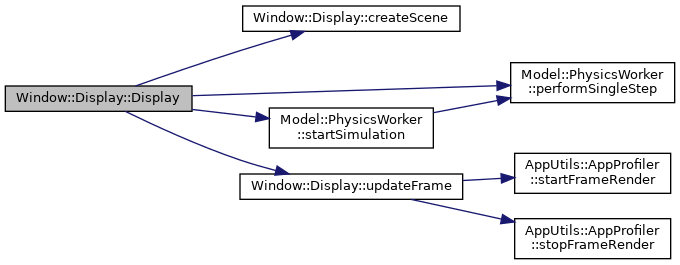

Here is the call graph for this function:

◆ ~Display()

Window::Display::~Display ( )

override

Destructor to ensure worker thread is cleaned up.

Definition at line 43 of file display.cpp.

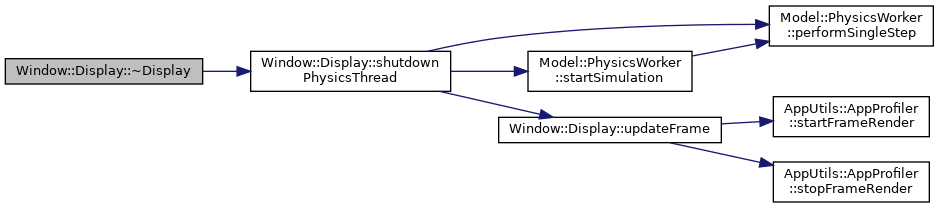

Here is the call graph for this function:

Member Function Documentation

◆ cleanup()

void Window::Display::cleanup ( )

Performs cleanup actions, such as printing profiling reports.

Definition at line 221 of file display.cpp.

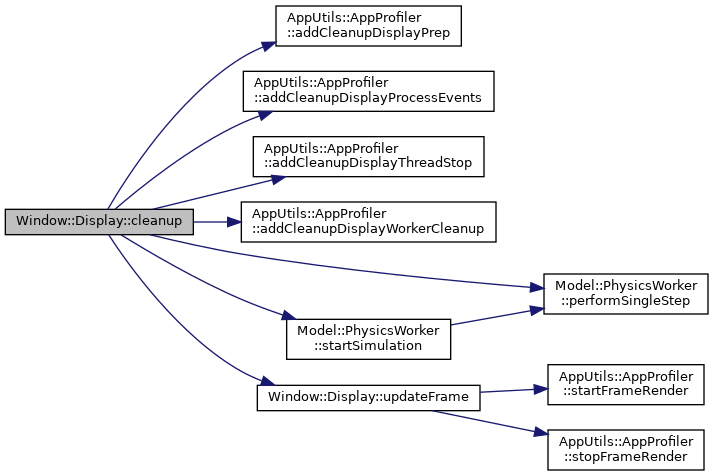

Here is the call graph for this function:

◆ createArrowEntity()

std::pair< Qt3DCore::QEntity , Qt3DCore::QTransform > Window::Display::createArrowEntity	(	Qt3DCore::QEntity *	parent,
		const QColor &	colour,
		float	radius,
		float	length
	)

private

Creates a 3D arrow entity for vector visualization.

Parameters

parent	The parent entity.
colour	The colour of the arrow.
radius	The radius of the arrow's shaft.
length	The initial length of the arrow.

Returns: A tuple containing the arrow's root entity and its transform component.

Definition at line 48 of file display.cpp.

◆ createScene()

void Window::Display::createScene ( unsigned int seed )

private

Set up the scene.

Parameters

seed	The seed for the random number generator.

Definition at line 150 of file display.cpp.

Here is the caller graph for this function:

◆ createSpheres()

void Window::Display::createSpheres ( Rng::Pcg32 & gen )

private

Create and set up the spherical bodies in the scene.

Parameters

gen	A seeded random number generator for reproducible body colours.

Definition at line 94 of file display.cpp.

◆ runSimulation()

void Window::Display::runSimulation ( )

Starts the physics simulation by starting the worker thread.

Definition at line 160 of file display.cpp.

◆ shutdownPhysicsThread()

void Window::Display::shutdownPhysicsThread ( )

Stops the physics thread and destroys the worker.

Safe to call multiple times. Used by cleanup() and the destructor.

Definition at line 170 of file display.cpp.

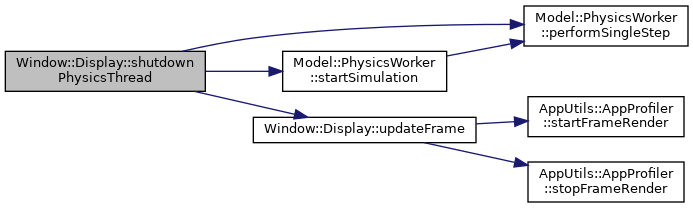

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateFrame

void Window::Display::updateFrame	(	const Model::Vector3dVec &	positions,
		const Model::QuaterniondVec &	quaternions,
		const Model::Vector3dVec &	torques,
		const Model::Vector3dVec &	alphas,
		std::size_t	iteration
	)

privateslot

Slot to receive updated data from the physics worker and update the scene.

Definition at line 271 of file display.cpp.

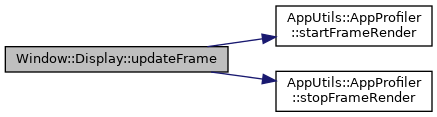

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateVectorArrow()

void Window::Display::updateVectorArrow	(	Qt3DCore::QTransform *	arrowTransform,
		const Model::Vector3d &	vector,
		double	scaleFactor
	)		const

private

Updates the transform of an arrow entity to represent a 3D vector.

Parameters

arrowTransform	The transform component of the arrow to update.
vector	The 3D vector to visualise.
scaleFactor	A multiplier for the arrow's length.

Definition at line 240 of file display.cpp.

Member Data Documentation

◆ bodies_

std::vector<BodyInformations> Window::Display::bodies_

private

List of spheres representing bodies. This list differs from the actual physical bodies in the simulation.

Definition at line 179 of file display.hpp.

◆ camController_

QPointer<Qt3DExtras::QOrbitCameraController> Window::Display::camController_

private

Mouse camera controller.

Definition at line 173 of file display.hpp.

◆ cleanupCalled_

bool Window::Display::cleanupCalled_

private

Flag to track if cleanup has already been called. This prevents cleanup from being called multiple times.

Definition at line 196 of file display.hpp.

◆ iterationCount_

std::size_t Window::Display::iterationCount_

private

The current iteration count.

Definition at line 158 of file display.hpp.

◆ maxIterations_

std::size_t Window::Display::maxIterations_

private

Maximum number of iterations.

Definition at line 161 of file display.hpp.

◆ physicsShutdown_

bool Window::Display::physicsShutdown_

private

True after shutdownPhysicsThread() has run.

Definition at line 199 of file display.hpp.

◆ physicsThread_

QThread* Window::Display::physicsThread_

private

The thread where the physics worker runs. Created with 'this' as parent, so Qt manages its lifetime.

Definition at line 188 of file display.hpp.

◆ physicsWorker_

QPointer<Model::PhysicsWorker> Window::Display::physicsWorker_

private

The worker object running the simulation. Uses QPointer for safety: it becomes nullptr if the object is destroyed.

Definition at line 184 of file display.hpp.

◆ rootEntity_

QPointer<Qt3DCore::QEntity> Window::Display::rootEntity_

private

The root entity for the 3D scene.

Definition at line 170 of file display.hpp.

◆ showAlphaArrow_

bool Window::Display::showAlphaArrow_

private

Flag to display angular acceleration vectors in the UI.

Definition at line 167 of file display.hpp.

◆ showTorqueArrow_

bool Window::Display::showTorqueArrow_

private

Flag to display torque vectors in the UI.

Definition at line 164 of file display.hpp.

◆ simulationTimer_

QTimer* Window::Display::simulationTimer_

private

Timer to drive the simulation loop. Reused timer that triggers physics steps automatically.

Definition at line 192 of file display.hpp.
