A k-d tree for fast nearest neighbour searches, specialized for our Bodies container. More...

#include <kdtree.hpp>

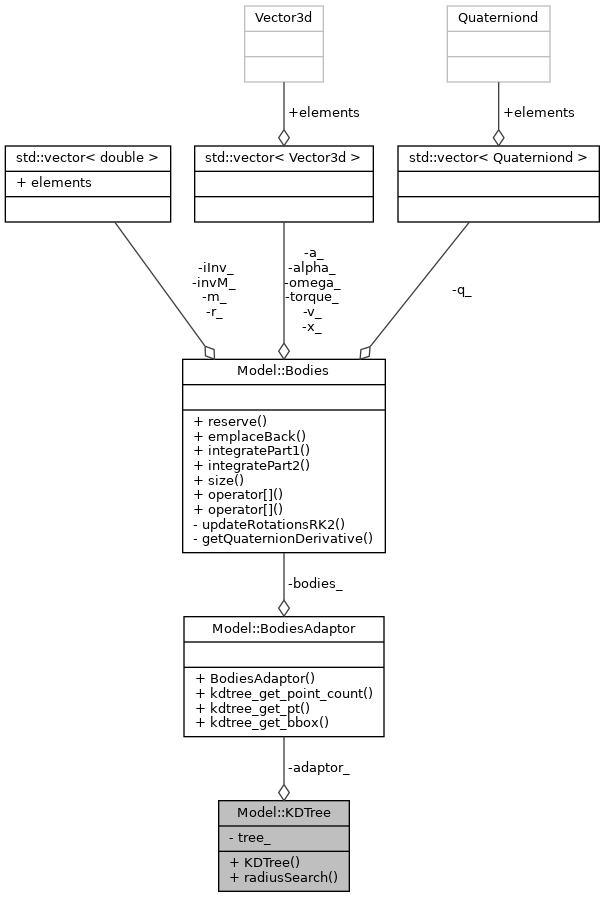

Collaboration diagram for Model::KDTree:

Public Types
using	TreeType = nanoflann::KDTreeSingleIndexAdaptor< nanoflann::L2_Simple_Adaptor< double, BodiesAdaptor >, BodiesAdaptor, 3, std::size_t >
	The specific KD-Tree type using our adapter. More...

Public Member Functions
	KDTree (const Bodies &in_bodies)
	Construct a new KDTree object and build the index. More...

template<typename VectorOfPairs >
std::size_t	radiusSearch (const double *query_point, const double search_radius, VectorOfPairs &out_results)
	Finds all bodies within a given radius of a query point. More...

Private Attributes
BodiesAdaptor	adaptor_
	The adapter that lets nanoflann access our data. More...

TreeType	tree_
	The underlying nanoflann k-d tree index. More...

Detailed Description

A k-d tree for fast nearest neighbour searches, specialized for our Bodies container.

Definition at line 75 of file kdtree.hpp.

Member Typedef Documentation

◆ TreeType

using Model::KDTree::TreeType = nanoflann::KDTreeSingleIndexAdaptor< nanoflann::L2_Simple_Adaptor<double, BodiesAdaptor>, BodiesAdaptor, 3 , std::size_t >

The specific KD-Tree type using our adapter.

Definition at line 78 of file kdtree.hpp.

Constructor & Destructor Documentation

◆ KDTree()

Model::KDTree::KDTree ( const Bodies & in_bodies )

inlineexplicit

Construct a new KDTree object and build the index.

Parameters

in_bodies The Bodies container to build the tree from.

Definition at line 87 of file kdtree.hpp.

Member Function Documentation

◆ radiusSearch()

template<typename VectorOfPairs >

std::size_t Model::KDTree::radiusSearch	(	const double *	query_point,
		const double	search_radius,
		VectorOfPairs &	out_results
	)

inline

Finds all bodies within a given radius of a query point.

Parameters

query_point	The centre point of the search.
search_radius	The radius of the search sphere.
out_results	A vector to store the results (pairs of index and squared distance).

Returns: The number of neighbours found.

Definition at line 106 of file kdtree.hpp.

Member Data Documentation

◆ adaptor_

BodiesAdaptor Model::KDTree::adaptor_

private

The adapter that lets nanoflann access our data.

Definition at line 126 of file kdtree.hpp.

◆ tree_

TreeType Model::KDTree::tree_

private

The underlying nanoflann k-d tree index.

Definition at line 128 of file kdtree.hpp.

The documentation for this class was generated from the following file:

kdtree.hpp
