Model::BodiesAdaptor Class Reference

An adapter to allow nanoflann to work directly with our Bodies SoA container. More...

#include <kdtree.hpp>

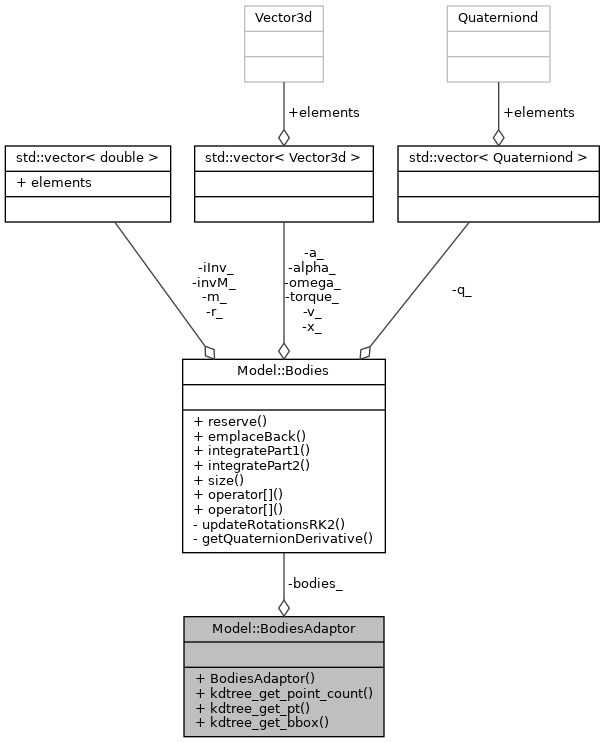

Collaboration diagram for Model::BodiesAdaptor:

Public Member Functions
	BodiesAdaptor (const Bodies &in_bodies)
	Construct a new Bodies Adaptor object. More...
std::size_t	kdtree_get_point_count () const
	Returns the number of bodies (points) in the dataset. More...
double	kdtree_get_pt (const std::size_t idx, const std::size_t dim) const
	Returns the value of a single dimension of a point. More...
template<class BBOX >
bool	kdtree_get_bbox (BBOX &) const
	Optional bounding box calculation (not used here). More...

Private Attributes
const Bodies &	bodies_
	A const reference to the bodies container. More...

Detailed Description

An adapter to allow nanoflann to work directly with our Bodies SoA container.

Note: The method names in this class follow the snake_case convention required by the nanoflann library's adapter interface, rather than the project's standard camelCase.

Definition at line 29 of file kdtree.hpp.

Constructor & Destructor Documentation

BodiesAdaptor()

Model::BodiesAdaptor::BodiesAdaptor ( const Bodies &  in_bodies )

inlineexplicit

Construct a new Bodies Adaptor object.

Parameters

in_bodies

The Bodies container.

Definition at line 35 of file kdtree.hpp.

Member Function Documentation

kdtree_get_bbox()

template<class BBOX >

bool Model::BodiesAdaptor::kdtree_get_bbox ( BBOX &  ) const

inline

Optional bounding box calculation (not used here).

Template Parameters

BBOX	The type of the bounding box.

Returns

Always false.

Definition at line 62 of file kdtree.hpp.

kdtree_get_point_count()

std::size_t Model::BodiesAdaptor::kdtree_get_point_count ( ) const

inline

Returns the number of bodies (points) in the dataset.

Returns

The number of bodies.

Definition at line 41 of file kdtree.hpp.

Here is the call graph for this function:

kdtree_get_pt()

double Model::BodiesAdaptor::kdtree_get_pt ( const std::size_t  idx, const std::size_t  dim  ) const

inline

Returns the value of a single dimension of a point.

Parameters

idx	The index of the point.
dim	The dimension (0 for x, 1 for y, 2 for z).

Returns

The coordinate value.

Definition at line 51 of file kdtree.hpp.

Member Data Documentation

bodies_

const Bodies& Model::BodiesAdaptor::bodies_

private

A const reference to the bodies container.

Definition at line 68 of file kdtree.hpp.

---

The documentation for this class was generated from the following file:

• kdtree.hpp
